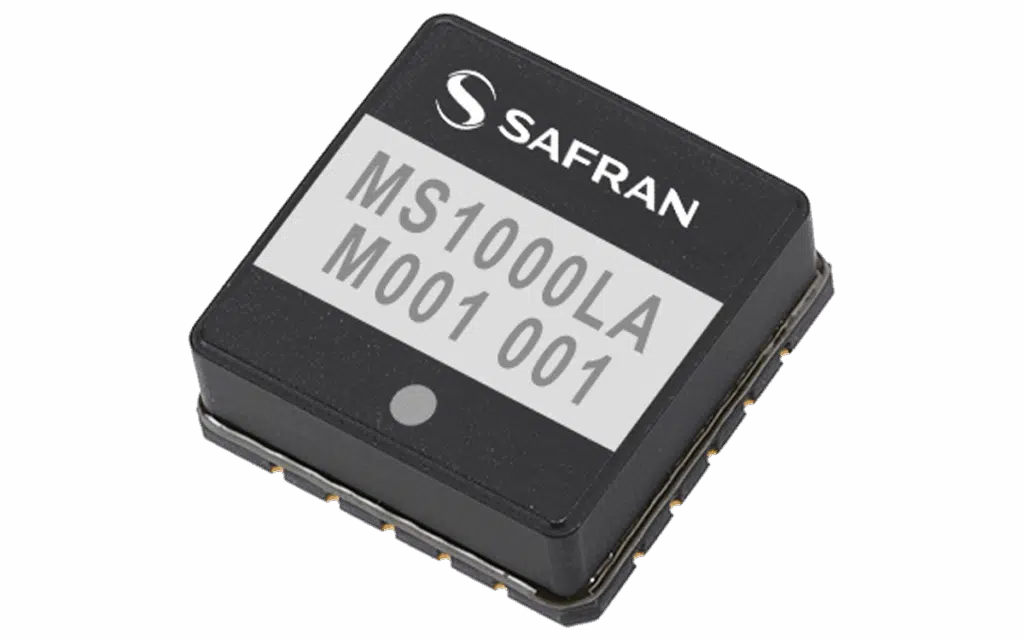

MEMS Capacitive Accelerometer MS1000L
SINGLE AXIS ANALOG ACCELEROMETER
The MS1000L product is a MEMS capacitive accelerometer based on a bulk micro-machined silicon element specifically designed for highest stability.
The product is low power, fully calibrated, robust up to 6000 g and extremely stable.
Free-of-export control, MS1000L is the best compromise between cost, performance and reliability.
Built-In Self-Test Function
The built-in self-test mode generates a square wave signal on the device outputs (OUTP & OUTN) and can be used for device failure detection. This can be helpful to prevent system faults before they occur.
Ensures Safety & Reliability
The high quality sensor design, the MEMS Accelerometer products support test engineers around the world quickly and flexibly, to ensure safety and reliability of vehicles, equipment and buildings.
Field-Proven In Critical Applications
The MS1000, TS1000 and VS1000 series MEMS Accelerometers are field-proven, supporting critical missions across a wide range of industries. Some of the applications include:
Railway Technology – bogie monitoring, rolling stock fatigue analysis;
Test & Measurement – aero flight testing, automotive testing, structure health testing – building, bridge, dam, nuclear plant, pipeline inspections;
Monitoring & Control – drilling equipment stability, telemetry, wind turbine monitoring;
Seismic Class C 90 dB – early earthquake warning system, seismic intensity instrumentation, structural health monitoring
UAV & ROV Autopilot
Any sensor fixed to either UAV or ROV systems must be light and small and must have a low power consumption. In addition, high shocks resistance is a key element to keep the integrity of the IMU in case of crash. In terms of accuracy, the IMUs integrated on professional drones, should deliver accuracies corresponding to the Inertial Tactical Grade. Accelerometers of the Inertial Tactical Grade will have bias repeatability performances of around 1 mg.
North finding is critical for tactical navigation and target orientation localization. It is used either in fixed static observation systems or in hand-held portable devices. MS1000 implements an innovative microelectromechanical design and electronics which unleash unbeatable performances with regard to the long term bias and scale factor repeatability, in-run bias and vibration rectification error (VRE).
Inertial Navigation System Accelerometer
A key challenge for navigation systems is making them smaller, less expensive and more robust while preserving high-end performances grade. The innovative MS1000 accelerometer responds to tactical grade performance requirements due to the excellent bias and scale factor performances.
REQUEST A QUOTE
- In-run bias stability (Allan Variance @ 10 s): 15 μg (10g, typ)
- Low Noise: 34μg / √Hz (10g range)
- Extremely robust : up to 6000g
- -55°C to +125°C Linear bias
- Full Scale Acceleration: up to +/- 100g
- Bias Temperature Coeff: +/- 5 mg /°C
- Noise in band: 3.5 ppm/√Hz of full scale
- In run bias stability
(Allan Var. @ 10s): 1.5 ppm of full scale
- Operating Power Consumption: 10 mW
- Operating Temperature: -40°C to +125°C
- Size: 9×9 mm2
