STIM318 IMU

non-GPS AIDED

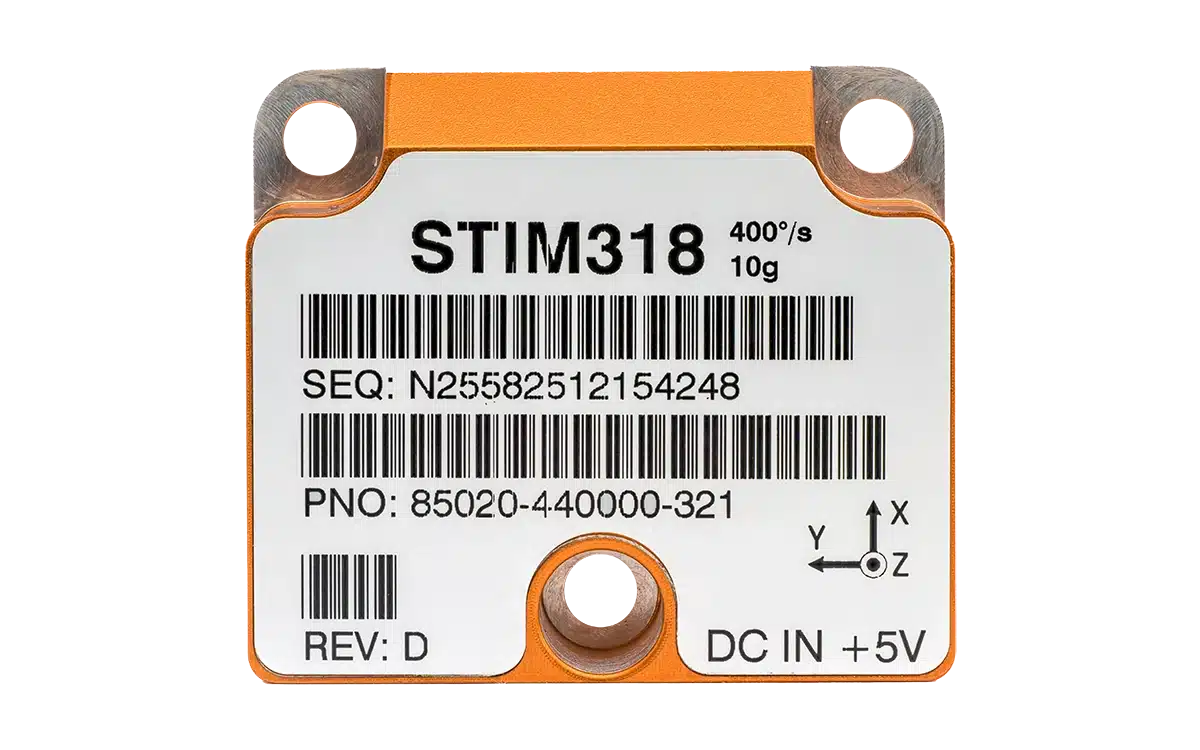

STIM318 is a small, tactical grade, low weight, high performance non-GPS aided Inertial Measurement Unit (IMU) with greatly improved accelerometer performance. It contains 3 highly accurate MEMS gyros, 3 ultra-high stability accelerometers and 3 inclinometers. The IMU is factory calibrated and compensated for temperature effects over its entire operating temperature range.

STIM318 is a cost-effective ITAR free solution for systems that only had FOGs as an alternative when reaching for the performance level of that STIM318 can offer.

ADVANTAGES

Full-Scale Range & Features

The STIM300 family of IMUs has a full-scale angular rate input range of ±400 °/s and the output is
capped at ±480 °/s. Standard acceleration input range is ±10 g. Axis
misalignment of as little as 1 mrad is achieved by electronic axis alignment.
All of the IMUs in the STIM300 family product line require a single 5 V power supply and has a digital serial RS422
interface.
User-Selectable Output Formats
The STIM300 family of IMUs offers several user selectable output formats and sample rates for
gyro and accelerometer data:
- Angular Rate
- Incremental Angle
- Average Angular Rate
- Integrated Angle
- Acceleration
- Integrated Velocity
- Incremental Velocity
- Average Acceleration
Unique Applications For the STIM318

The STIM318 IMU is well suited for stabilization, guidance and
navigation applications in Industrial, Aerospace and Defence
markets. The design is field proven in Military Land Navigators,
Missile systems, Target acquisition systems, Airborne surveillance,
DIRCM, Remote Weapon Systems, Launch vehicles and Satellites.
In many applications, STIM318 can competitively replace IMUs
based on Fiber Optic Gyros (FOGs) and improve system
performance with respect to robustness, reliability, size, weight,
power and cost.

REQUEST A QUOTE

FEATURES

ITAR free
Low gyro bias instability (0.3°/h)
Low gyro noise (0.15°/√h)
Low accelerometer bias instability (0.003mg)
Low accelerometer noise (0.015 m/s/√h)
±10g acceleration input range
User programmable bias trim offset
Customer configurable output format, sampling rate and filter settings
Compensated digital output, RS422
Continuous self-diagnostics
Solid state – high reliability
Insensitive to magnetic fields
Weight: <0,13 lbs (<57g)
Volume: <2,2 cu. in. (35cm3)

SPECS

Weight: <55 g
Volume: <2,2 cu. in. (35cm3)
Input Range: +/- 400 °/s
Power Supply: 5.0 V
Operating Power Consumption: 1.5 W
Operating Temperature: -40°C to +85°C
Time to valid data: 0.7 s
Mechanical shock: 1500 g
