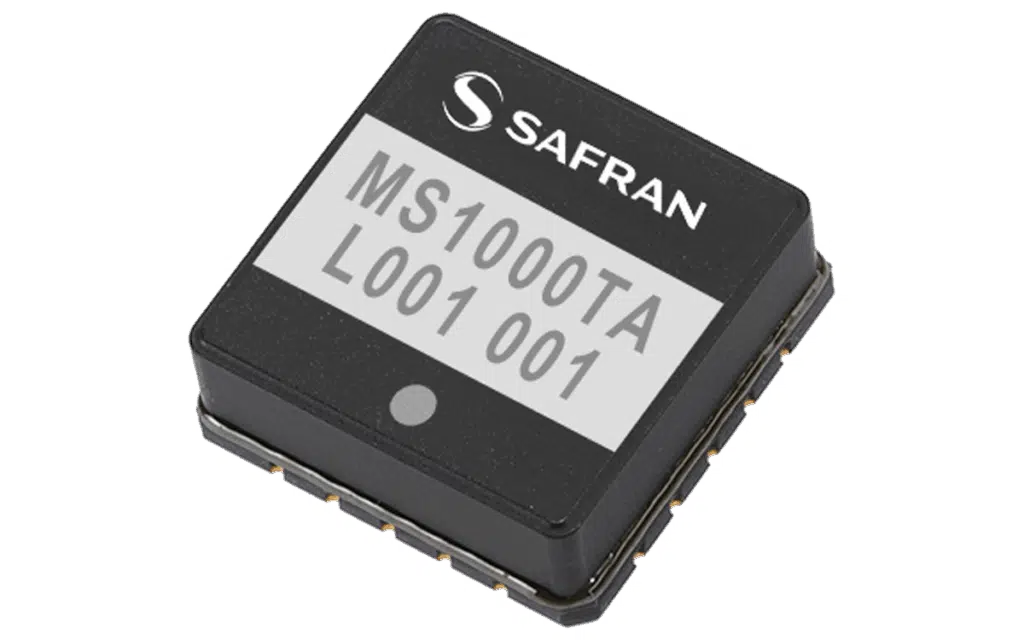

High Temperature MEMS Accelerometer MS1000T

HIGH TEMPERATURE FOR DRILLING

The New MS1000T is the best in class MEMS accelerometer specifically designed for high-temperature directional drilling applications.

This accelerometer takes benefit from MS1000 and TS1000T family, to make it the best high temperature accelerometer product made specifically for high-temperature and drilling market.

Considered a single axis accelerometer, the MS1000T is known for its low noise, high-temperature performance. It measures acceleration along a single specified axis.

ADVANTAGES

Uniquely Designed For Drilling

The TS1000T and MS1000T high-temperature MEMS accelerometers are specifically designed for inertial directional drilling applications because they can withstand extreme shock and vibration, as well as high temperatures. The TS1000T and MS1000T have a shock survivability of 6000 g and an endurance shock tolerance of 1500 g. Unconventional resource extraction requires sophisticated drilling technologies, and the TS1000T and MS1000T help with complex drilling operations including sidetracking, fault drilling, multiple target zones and applications that entail multiple wells.
Built-In Self-Test Function

The built-in self-test mode generates a square wave signal on the device outputs (OUTP & OUTN) and can be used for device failure detection. This can be helpful to prevent system faults before they occur.
Ensures Safety & Reliability

The high quality sensor design, the MEMS Accelerometer products support test engineers around the world quickly and flexibly, to ensure safety and reliability of vehicles, equipment and buildings.

USE CASES

Precise Drilling

Our high-temperature MEMS accelerometers provide exceptional accuracy and reliability in extreme environments for directional drilling.
Learn More

REQUEST A QUOTE

Facebook

This field is for validation purposes and should be left unchanged.

Name*

Job title

Email*

Phone number*

Company name*

Country*

State*

This field is hidden when viewing the form

Which solution are you most interested in?*

Website*

Application*

Please specify your application*

Message*

Please submit ETL and PLB inquiries via the above links. Thank you. For inquiries and comprehensive details on Kannad Emergency Locator Transmitters (ELTs) and Sarbe Personal Locator Beacons (PLBs), please visit the Safran Electronics & Defense Beacons website: https://www.safran-group.com/companies/safran-electronics-defense-beacons/. For technical support, visit https://safran-navigation-timing.com/support-hub/kannad-elt/.

Safran requires your contact information to provide details on products and services. You can opt out anytime. For more on unsubscribing and our privacy practices, see our privacy policy.

FEATURES

High temperature range: -40°C to +175°C
Excellent bias residual modeling error: < 4.5 mg (±30g, typ)
Endurance to high repetitive shocks: 1’000g (500 times)
Low Vibration Rectification Error: <170μg/g2 (±30g, typ)

SPECS

Size: LCC20 (8.9*8.9*3.2) mm
Operating Power Consumption: 10 mW
Endurance Shock (500 times, 0.5 ms): 1000 g
“Full-Scale Acceleration: +/- 2g and +/- 30g
In run bias stability (Allan Var. @ 10s): 1.5 ppm of full scale
Noise in band: <102 μg RMS (+/- 30g)
Scale factor long term repeatability: < 500 ppm
Operating Temperature: (>1000h): -40°C to +150°C
