GNSS Simulator Configurator

What is CRPA?

Software vs. Turnkey

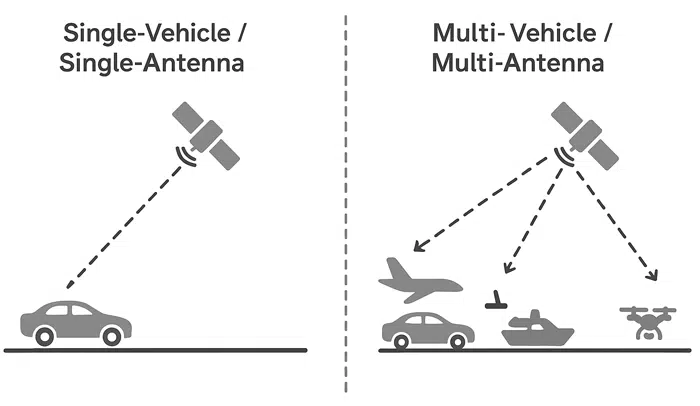

Single vs. Multi

• Single-vehicle Test one GNSS receiver in isolation.
• Multi-vehicle/multi-antenna simulate real-world operational scenarios with multiple synchronized platforms, antennas, and dynamic geometries — critical for defense, aerospace, and autonomous systems.

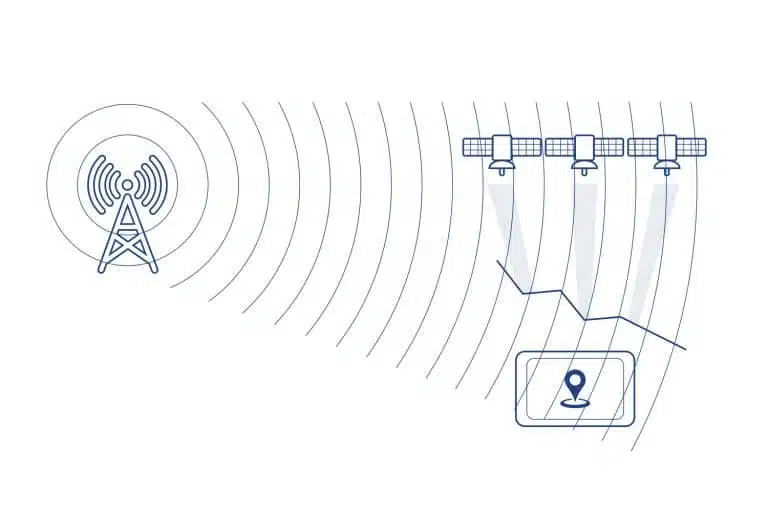

Basic vs. Advanced Jamming

• Basic Jamming is a “plug‑and‑play” feature for quick, single‑source tests but lacks realism.
• Advanced Jamming gives you full control over jammer geometry, antenna patterns, and automatic propagation – essential for realistic threat scenarios.
• Advanced Spoofing builds on Advanced Jamming, adding directional spoofing and full spoofer‑constellation control, ideal for CRPA and wave‑front testing.

Generating Multiple Frequencies

Skydel creates several GNSS carrier frequencies at once by using its GPU‑based engine to generate dozens of independent complex I/Q streams at baseband, each containing the proper spreading code, navigation data, Doppler, and any interference payload.

These streams are then sent to the SDR, which up‑converts each one to its specified RF carrier, allowing all signals to be output simultaneously without extra hardware.
