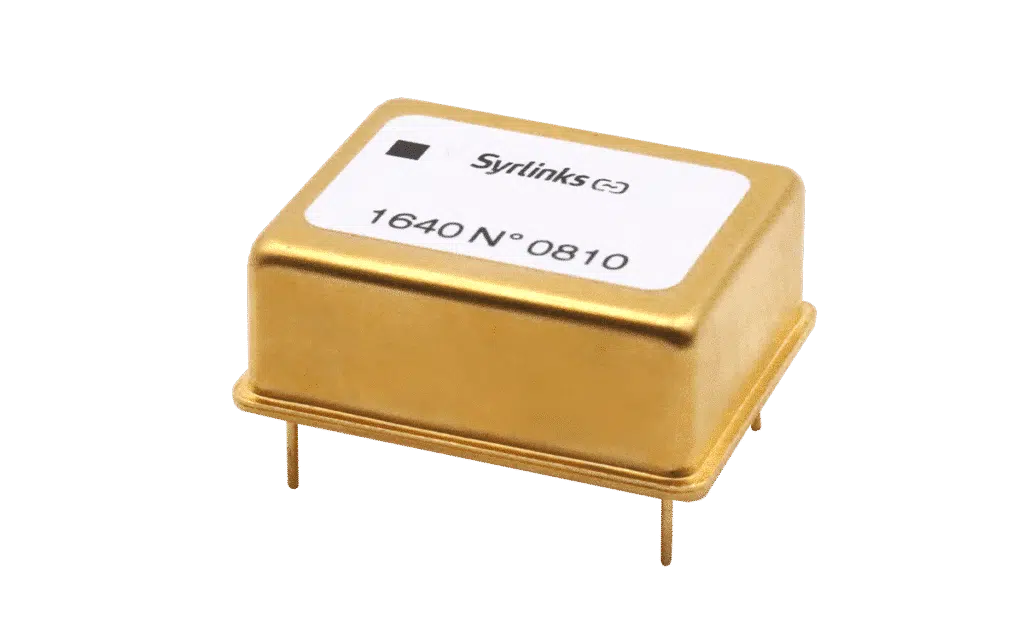

EWOS16HP-UW OCXO Crystal Oscillator
High performance OCXO for underwater systems
View all Oven Controlled Crystal Oscillators (OCXOs).
EWOS16HP-UW is a very low aging and ultra low power consumption OCXO dedicated to underwater systems. Built around a SC-cut resonator, it combines a low aging drift and an extremely low power consumption at a record 109 mW measured at 25°C. It is used in many underwater systems and provides an excellent holdover precision time for battery powered devices like Underwater Autonomous Vehicles. Supplied with 3.3V, it delivers an high stability HCMOS 16.384 MHz frequency outputand a very low thermal sensitivity at ±15ppb (typ.)
REQUEST A QUOTE
FEATURES
- 10, 16.384, 20, 32.768 MHz HCMOS output
- ±15 ppb (typ.) thermal sensitivity
- ±109 mW @ 25°C (typ.)
- ±0,2 ppb/day after 30 days (typ.)
SPECS
- Size: 25.7 x 31.7 x 11.13 mm
- Weight: 15g
- Operating Temperature: -10˚C to +45˚C
- Shock: 1500G peak / 0.5 ms / 3 axis ; MIL-STD-883 method 2002, Test Condition B
- Vibration: 16.91 Grms / 10 to 2000 Hz Random / 3 min per axis, MIL STD 202-214 cond E
