Radar Transponders

Enhancing the tracking capability of C-Band radars.

Safran has developed field-proven C-Band Radar Transponders to enable ground radars to effectively track space and rocket launchers in real-time.

What is a Radar Transponder & Who Is It For?

A Radar Transponder – specifically a C-Band Radar Transponder – is a device mounted on a rocket, drone, or test vehicle that receives and transmits signal pulses, allowing a ground radar system to determine the vehicle’s position and trajectory. C-Band refers to the radio frequency range the transponder uses which is in the 5000 MHz range. The C-Band is ideal for systems that need to track vehicle or object position because it is resistant to bad weather interference and helps with accurate distance measurement.

Rockets travelling from Earth’s surface into orbit need reliable equipment to accurately track their position and trajectory, especially during the ascent phase of a launch. Safran’s radar transponders play a key role in this challenge, by communicating with ground radar at all times in an effective and coded way.

Safran radar transponders are being used in applications for:

Space Launcher Trajectory Tracking

Heavy-lift space launchers like the Ariane 62 and 64 utilize Safran C-Band Radar Transponders for commercial and government space missions.

Orbiting Spacecraft

Safran transponders mounted on orbiting spacecraft are used for Telemetry, Tracking & Command (TTC) purposes. They listen to commands from a ground station, execute them, and then transmit system data back to Earth.

Earth Observation Mission Support

C-band radar transponders are used as active devices on the ground to verify and maintain accuracy of c-band synthetic aperture radar systems in space.

Missile Tracking

During test missions, transponder devices act as augmentation technology, enhancing the tracking capability of ground based radar.

Safran C-Band Radar Transponder Solutions

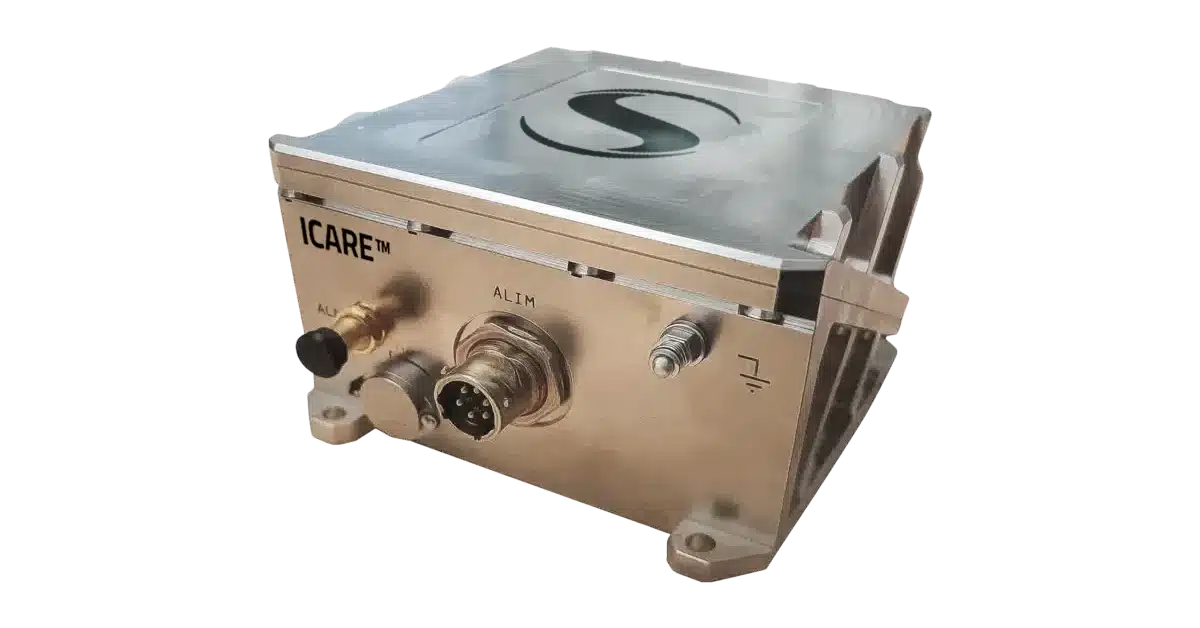

ICARE™

A robust and high power C-Band radar transponder contributing to trajectory tracking for aerial vehicles and space launchers.

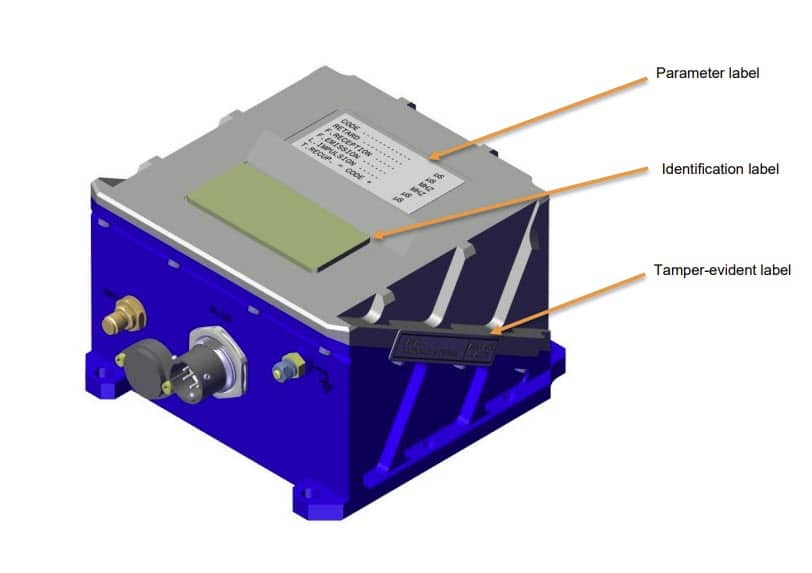

Competitive, high power and compact, the ICARE™ is the most advanced C-Band European radar transponder for aerial and space applications. Initially developed and qualified for Ariane 6 purpose, its high power and its compacity make it suitable for integration in micro & mini launcher. It offers excellent performance and very high reliability under harsh conditions..

Learn More

C-Band Transponders for Next-Gen Launcher Tracking

	What It Means for Launcher Operators	Typical Industry Need	How C-Band Transponders Help	Why Safran Excels
Tracking Accuracy	Precise position and velocity data during flight for real-time trajectory analysis	Sub-meter range accuracy under dynamic conditions	C-Band transponders amplify and retransmit radar signals for clear range measurement	Safran products deliver high output power and low noise, ensuring clean radar returns even at long range
Reliability & Qualification	Continuous operation throughout launch phase and re-entry	Qualification for vibration, shock, thermal cycling, and radiation	Space-qualified electronics maintain performance in harsh flight environments	Safran transponders were developed and qualified for Ariane 6—flight-proven under European launcher standards
Integration & Size	Easy fit within launcher avionics or payload bay	Compact, lightweight, and simple interfaces	Modular C-Band units designed for small launcher footprints	ICARE’s compact form factor enables integration in micro- and mini-launchers without performance loss
Signal Power & Range	Ability to maintain radar link over long distances and through atmosphere	High effective radiated power for ground radar detection	High-power transmit response improves radar visibility and data stability	ICARE™ offers one of the highest output powers in its class, ensuring uninterrupted tracking to orbit separation
Operational Value	Simplified ground operations and mission assurance	Reduced loss-of-signal risk and better data for flight reconstruction	Supports real-time radar tracking and post-flight analysis	ICARE™ enhances ground radar sensitivity, improving safety, telemetry redundancy, and mission insight

Uninterrupted Tracking, Every Mission

Safran’s C-Band transponders ensure continuous, high-precision trajectory tracking from lift-off to orbit. By automatically responding to ground radar signals with powerful, low-noise replies, they guarantee reliable position data in real time. This enables mission operators to maintain situational awareness throughout every flight phase—essential for safety, performance validation, and post-mission analysis.

Engineered for Harsh Environments

Built to withstand the extreme vibration, temperature swings, and radiation of launch and flight, Safran transponders deliver exceptional reliability under the most demanding conditions. Each unit is designed and qualified to aerospace and spaceflight standards, ensuring consistent operation across multiple missions. This rugged engineering minimizes downtime and supports long-term mission assurance.

Compact Design, Powerful Performance

Safran’s transponder technology combines high output power with a compact, lightweight design ideal for modern launcher architectures. Easy to integrate and energy efficient, these units fit within constrained avionics bays or small launcher platforms without compromising performance. The result is a solution that optimizes both payload capacity and radar tracking quality—key advantages for next-generation space missions.
