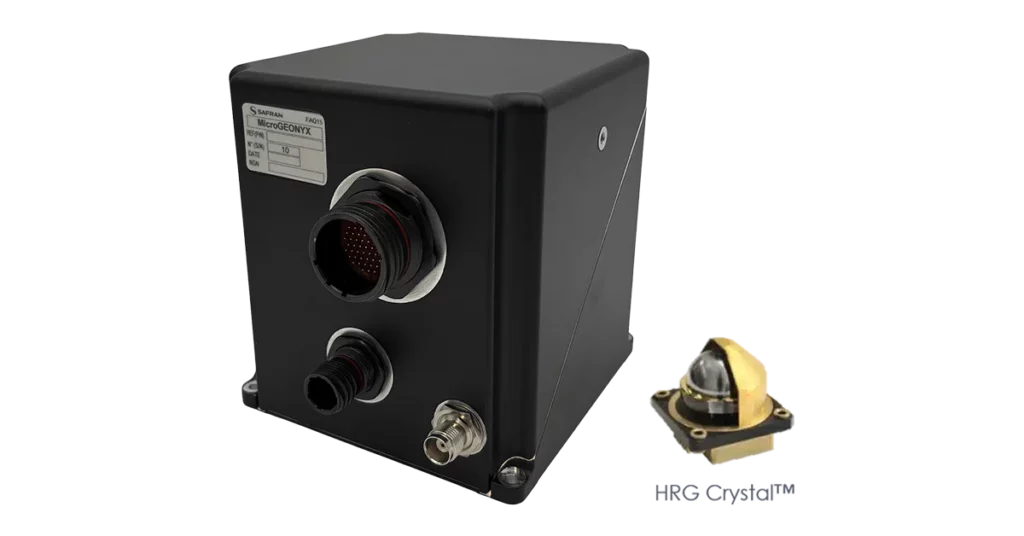

MicroGEONYX™
Land Platform Inertial Navigation Unit
The MicroGeonyx™ is the most compact INS for its class of performance. It brings the battle-proven performance of the Geonyx™ into a miniaturized footprint, specifically engineered for space-constrained platforms where SWaP-C is a critical constraint.
Powered by HRG Crystal™ technology, this navigation-grade system delivers reliable, high-precision inertial navigation and positioning in demanding operational environments. Its optimized design supportsseamless integration for navigation purposes across all types of vehicle platforms and mission-critical onboard systems.
ADVANTAGES
Easy System Integration
As a full inertial navigation system, MicroGEONYX™ are insensitive to magnetic disturbances, providing higher accuracy and easier vehicle integration. It offers the most cost-effective navigation solutions for any vehicle platform.
Operational Efficiency
Designed for time-sensitive missions in the most constrained operational environments (jammed or denied GNSS*), MicroGEONYX™ provides:
- A pointing accuracies of 2 mils
- Autonomous True North finding in less than 5 minutes
- On-the-move alignment without GNSS
- Autonomous navigation without GNSS
- Shoot-and-scoot capability
- Multiple Rounds Simultaneous Impact (MRSI) capability
- High positioning accuracy in the harshest conditions
- Jamming, Spoofing and Meaconing algorithms detection (NavWar Option)
REQUEST A QUOTE
FEATURES
- GNSS Threats Proof
- Extremely Compact
- Cost-effective Solution
- Outstanding Reliability
- True North Finding Capability
- On-the-move Alignment without GNSS Capability
SPECS
- Optimized Architecture
- Size: 120 x 120 x 130 mm / 1.9 L
- Weight: < 3 Kg
- Consumption: < 12W Gyro technology: HRG Crystal™
- Maintenance
- MTBF (Mean Time Between Failure): > 100,000 hours
- Flexible Interfaces
- Embedded GNSS receiver (external GNSS possible)
- RS422
- Ethernet
- CANBUS
- Navigation standards
- Environment: MIL-STD-810
- Electrical: MIL-STD-1275
- EMC: MIL-STD-461
