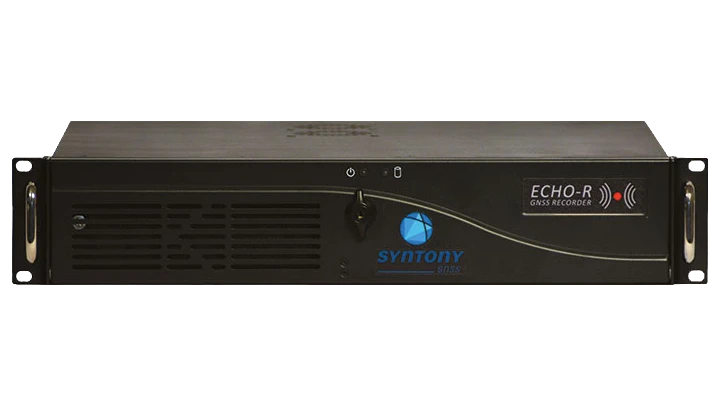

Echo R™
Dedicated Recorder
Powerful, Flexible, Scalable, Easy to use, Affordable
Whether developing new components, improving algorithms or working on the integration of an entire receiver system, Echo™ GNSS Recorder is the perfect fit for your testbed environment.
Space agencies & industry leaders already benefit from our GNSS Recorder system.
Echo™ singularity lies in the alliance of SDR (Software-Defined Radio) and a state-of-the-art RF Analog frontend. Top-end processing performance and superior RF quality are now met into a COTS appliance with utmost flexibility in recording control.
ADVANTAGES
Constellations & Bands
- Galileo: E1, E5a/b, E6HAS
- GPS: L1C/A, L2, L5, L6, P(Y), M-Code
- GLONASS: G1, G2, G3,
- QZSS: L1C/A, L1C, L1S, L1-SAIF, L2C, L5, LEX
- IRNSS NavIC: L5, S-Band
- BeiDou: B1, B2, B3
- SBAS: EGNOS, WAAS, GAGAN, MSAS
Highest-Fidelity
- 16-bit I&Q
- 200 MHz Sampling Rate
- Up to 1.6 GB/s write/read speed
- Ability to record 3 RF channels at 8-bit I&Q and 200 MHz sampling rate simultaneously
- Ability to record 3 RF channels at 16-bit I&Q and 100 MHz sampling rate simultaneously
Flexible & Scalable
- 2 independent units: 1 to record & 1 to playback
- Starting with GNSS L1, 50 MHz, 4 bit, 8 TB SSD swappable disks
- Each RF channel is configurable (resolution, sampling frequency/bandwidth, AGC settings, Signal Spectrum & GPS L1 PRN analysis)
- Ability to record 3 RF channels at 8-bit I&Q and 200 MHz sampling rate simultaneously
- Flexible quantization and sampling rate
- Quick data dump on local or network storage
- No limit on recording time and playback
Easy to Setup & Use
- Signal spectrum & GPS L1 PRN analysis software included
- Simple local or remote control
- Quick setup, including for multi-antenna or multireceiver
- Extensive documentation, examples available & local support
- Field software updates
Options
- Up to 128 TB SSD internal storage (swappable) and sync to external NAS
- Network adapter 10 or 20 Gb/s
- Customization on Demand (Signals, quantization, sampling rate, external sensors like odometer or IMU…)
REQUEST A QUOTE
FEATURES
- Multi-constellation GPS, Galileo, GLONASS, QZSS, IRNSS NavIC, S-Band, BeiDou, SBAS
- Up to 3 RF Input channels
- Customization on Demand
SPECIFICATIONS
- RF Input
- Channels: Up to 3
- Frequency Range: 1100 MHz to 2550 MHz
- Antenna Power Supply: Filtered 5 VDC, 100 mA Max.
- Connector: N Female
- Synthesizer – Internal 10MHz Reference
- Stability: 5×10-9 from +10°C to +40°C
- Int. 10MHz Reference Output: BNC female
- Aging: 0.5 ppb/day and 50 ppb/year
- Connector: SMA Female
