How Resilient PNT Works in GPS-Denied Environments

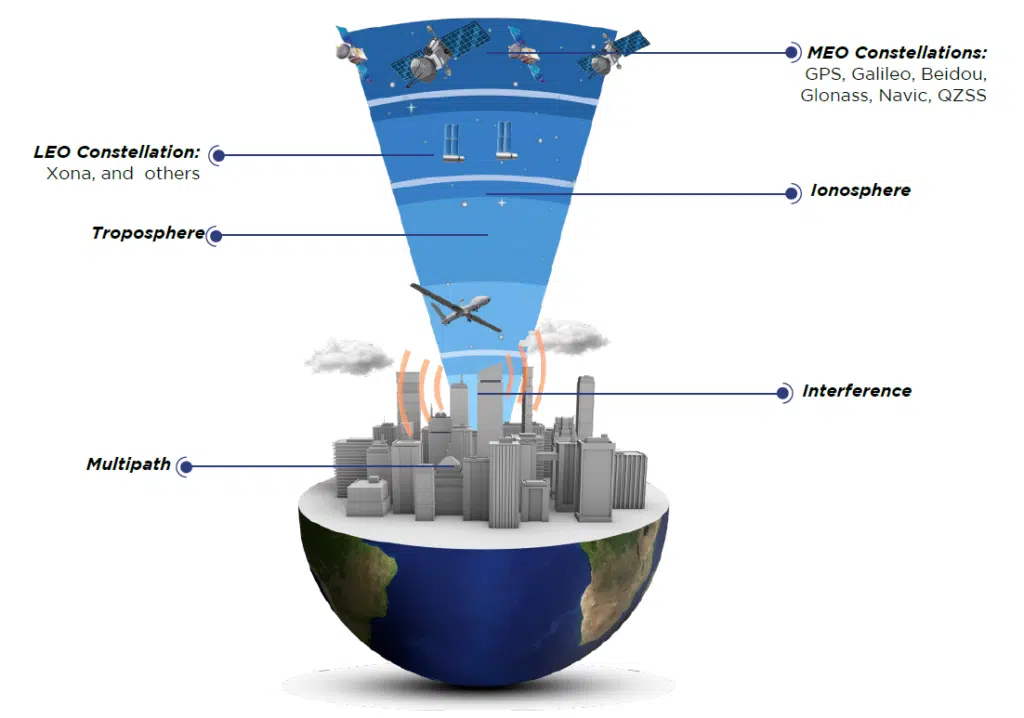

The technology that is used in aviation, cell phones, computer networks, power utilities, transportation, and telecommunications all relies on GPS from satellites – which is also known as a Global Navigation Satellite System (GNSS). GPS is ubiquitous because it helps us know where we are at every second. However because it is free and has been widely accessible for many years, the signals that travel from the GPS satellites to our devices can be intercepted.

Adversaries now routinely employ jamming and spoofing techniques to disrupt satellite navigation systems. This disruption can cause our GNSS / GPS receivers to lose a lock with the satellites or be thrown off course.

The question then becomes how can we overcome these potential signal threats?

The answer lies in using anti-jam and anti-spoof technologies that have the ability to keep time without a satellite signal or the ability to calculate a vehicle’s orientation and movement without GPS. More specifically, these solutions are referred to as inertial navigation systems (INS), or resilient PNT precision time servers that have built-in holdover capabilities to maintain trusted positioning, navigation, and synchronization even when GNSS signals become unavailable.

Understanding the Threat: Jamming vs. Spoofing

Before discussing resilient PNT, it’s important to understand the two primary threats to GNSS-dependent systems.

GNSS Jamming

Jamming occurs when a radio frequency transmitter overwhelms legitimate satellite signals with interference. Because GNSS signals arrive at the Earth’s surface at extremely low power levels, relatively inexpensive jammers can disrupt reception over significant distances.

When jamming occurs, GNSS receivers may lose lock on satellites entirely, resulting in loss of position, navigation, and timing information.

GNSS Spoofing

Spoofing is often more dangerous than jamming because it can deceive a receiver rather than simply deny service.

A spoofer transmits counterfeit GNSS signals designed to appear legitimate. If successful, the receiver may calculate incorrect position, velocity, or time information while appearing to operate normally.

For military systems, communications networks, utilities, and critical infrastructure operators, trusting incorrect data can be far more damaging than receiving no data at all.

The Foundation of Resilient PNT

Positioning, Navigation, Timing (PNT) That Continues Functioning Under Any Circumstance

To counteract GPS and GNSS signal interference, companies and government organizations have developed “Resilient PNT” which is built on a layered approach. Rather than relying solely on GPS signals or relying on a single source of timing or navigation information, resilient systems integrate multiple technologies that can cross-check, validate, and sustain operations when one source becomes compromised.

A typical resilient PNT architecture includes:

Anti-jam GNSS capabilities
Anti-spoof GNSS protection
Inertial Navigation Systems (INS)
Precision timing sources and oscillators
Holdover technologies
Sensor fusion and anomaly detection

Together, these technologies enable systems to continue operating through temporary or extended GNSS outages.

Anti-Jam GNSS: Maintaining Signal Availability

The first line of defense against GNSS disruption is preventing interference from overwhelming satellite signals.

Anti-jam GNSS systems use specialized antennas, beamforming techniques, filtering, and signal processing to suppress interference while preserving reception of legitimate satellite signals.

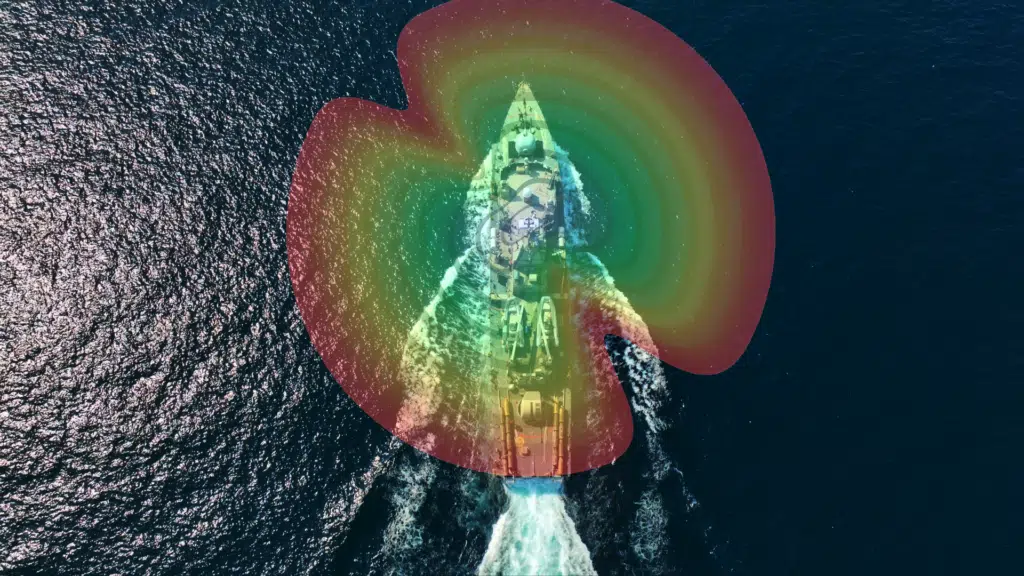

In military and high-assurance environments, controlled reception pattern antennas (CRPAs) and advanced anti-jam processing can significantly reduce the effectiveness of intentional jamming attacks.

By maintaining access to satellite signals under challenging RF conditions, anti-jam technologies help prevent navigation and timing systems from entering degraded states.

However, anti-jam capabilities alone cannot address spoofing threats or situations where GNSS signals are completely unavailable.

Anti-Spoof GNSS: Trusting the Data

When GNSS signals are available, systems must still determine whether those signals are authentic.

Anti-spoof technologies continuously analyze incoming satellite signals for anomalies that may indicate manipulation. These systems can monitor:

Signal power levels
Timing inconsistencies
Satellite geometry anomalies
Direction-of-arrival discrepancies
Navigation message integrity
Cross-validation against independent sensors

If suspicious behavior is detected, resilient PNT systems can reject compromised data and transition to alternate timing and navigation sources.

This ability to distinguish trustworthy signals from counterfeit ones is critical in military operations, critical infrastructure environments, and national security applications.

Inertial Navigation Systems: Navigating Without Satellites

When GNSS becomes unavailable entirely, inertial navigation systems provide an independent source of positioning and navigation information.

Unlike GNSS, an INS does not depend on external signals.

Instead, it uses internal sensors such as:

Accelerometers
Gyroscopes
Magnetometers
Advanced sensor fusion algorithms

By continuously measuring acceleration and rotational movement, the system calculates changes in position, velocity, and orientation.

This allows vehicles, platforms, and systems to continue navigating during:

GNSS outages
Jamming attacks
Spoofing events
Underground operations
Indoor missions
Urban canyon environments

Although inertial systems accumulate small errors over time, modern INS solutions can provide highly accurate navigation data during periods when satellite signals are unavailable.

For many mission-critical applications, this capability bridges the gap until trusted GNSS signals return.

Timing Holdover: Keeping Networks Synchronized

Navigation is only part of the resilient PNT challenge.

Many organizations rely on GNSS primarily as a timing source rather than a positioning source.

Telecommunications networks, power grids, financial systems, data centers, military communications systems, and industrial control networks all require highly accurate synchronization.

When GNSS timing signals disappear, operations cannot simply stop.

This is where holdover technology becomes essential.

What Is Holdover?

Holdover refers to a timing system’s ability to maintain accurate time after losing its external reference source.

Rather than immediately drifting when GNSS is unavailable, a disciplined oscillator continues generating precise timing signals using previously learned corrections and internal stability characteristics.

The quality of holdover depends largely on the performance of the oscillator and the algorithms used to manage it.

High-performance holdover can maintain synchronization for hours, days, or even longer depending on system requirements and environmental conditions.

How Resilient PNT Technologies Work Together

The true strength of resilient PNT comes from integrating multiple technologies into a coordinated architecture.

Consider a typical scenario:

A GNSS receiver detects interference.
Anti-jam technologies attempt to preserve satellite reception.
Anti-spoof mechanisms verify signal authenticity.
If GNSS becomes unavailable or untrusted, the system rejects compromised data.
An inertial navigation system continues providing position and navigation information.
Precision oscillators maintain timing accuracy through holdover mode.
When trusted GNSS signals return, the system seamlessly re-establishes synchronization.

This layered approach ensures continuity of operations even in contested or degraded environments.

Resilient PNT Solutions for GPS-Denied Environments

Several specialized technologies are designed specifically to address GNSS disruptions and maintain trusted PNT.

VersaSync: Assured Timing with Holdover Protection

The VersaSync™ timing and synchronization platform is designed for mission-critical applications requiring resilient timing and frequency distribution.

VersaSync continuously monitors GNSS inputs and can detect anomalies associated with interference or spoofing events. When trusted GNSS references become unavailable, VersaSync can transition into holdover mode, maintaining accurate timing outputs while awaiting restoration of a trusted reference.

This enables communications systems, radar networks, command-and-control infrastructure, and critical networks to continue operating during GPS disruptions without experiencing immediate synchronization loss.

Geonyx: Resilient Navigation Through Inertial Technology

Geonyx™ inertial navigation systems provide an independent navigation capability when GNSS signals are unavailable or untrusted.

By combining high-performance inertial sensors with advanced navigation algorithms, Geonyx can maintain accurate position, velocity, and attitude information through periods of GNSS denial.

This capability is particularly valuable for defense platforms, autonomous systems, and critical missions operating in contested electromagnetic environments where satellite navigation cannot be relied upon.

SecureSync and the SRO-100 Oscillator: Extended Timing Holdover

SecureSync® network time servers provide resilient timing and synchronization for critical infrastructure and enterprise networks.

When equipped with the SRO-100 rubidium oscillator, SecureSync can deliver exceptional holdover performance during GNSS outages.

The SRO-100’s stability enables SecureSync to maintain highly accurate timing even when external references are temporarily lost, helping organizations preserve synchronization across:

Telecommunications networks
Utility operations
Data centers
Financial systems
Defense communications infrastructure

This combination of precise timing, robust holdover, and resilient synchronization helps reduce operational risk during signal disruptions.

The Future of Trusted PNT

As electronic warfare capabilities, cyber threats, and GNSS interference continue to evolve, resilient PNT is becoming a strategic requirement rather than an optional enhancement.

Organizations that depend on accurate positioning, navigation, and timing must assume that GPS disruptions will occur and design systems accordingly.

By combining anti-jam and anti-spoof GNSS technologies, inertial navigation systems, and precision timing holdover, resilient PNT architectures ensure continuity of operations even when satellite signals cannot be trusted.

Whether supporting military missions, telecommunications infrastructure, utility networks, transportation systems, or enterprise operations, resilient PNT provides the assurance that critical systems remain synchronized, informed, and operational when it matters most.

In an increasingly contested world, trusted PNT is no longer just about receiving a signal. It’s about maintaining confidence when that signal disappears.
